High Efficent Evo 10 to 15 HL

Spedizione esclusa

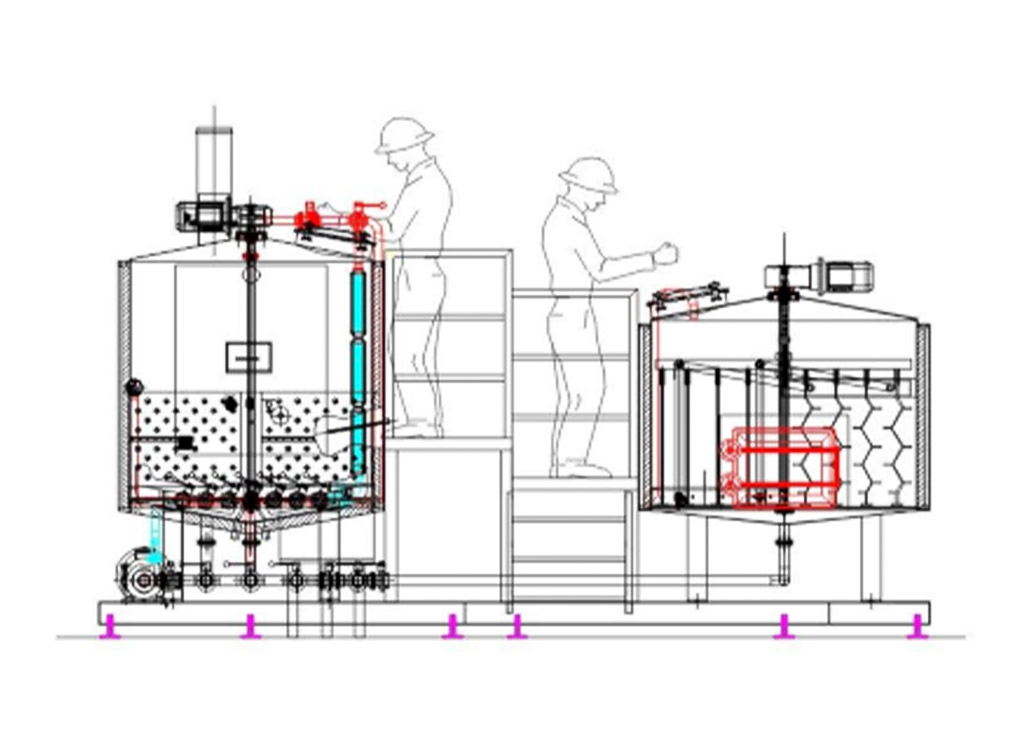

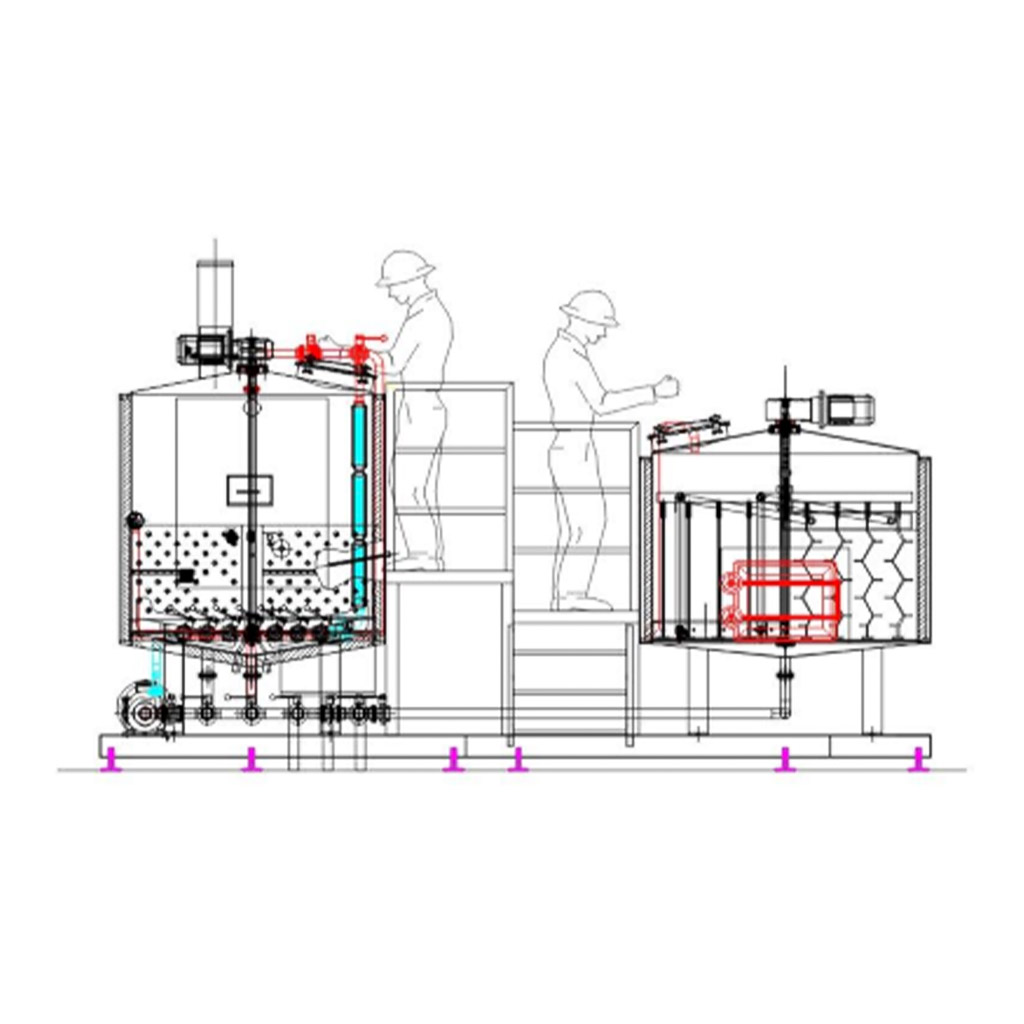

PLANT DESCRIPTION

– No. 3 insulated vats
– Heating type: steam – electric
– System voltage: 380 V three-phase
– Vat 1: mashing, boiling and whirpooling
– Vat 2: filtration
– Vat 3: accumulation
– Optional: vat 4 chilled water storage

STANDARD EQUIPMENT

– Plant structure made entirely of AISI 304 stainless steel with adjustable support feet
– Stainless steel plate heat exchanger with EPDM seals
– N°1 stainless steel open impeller centrifugal pump
– N°1 dedicated centrifugal pump transferring water from storage tank
– N°1 AUTOMATIC stainless steel control panel for system control
– 10″ touch screen
– Automatic temperature control, recipes, pumps, stirrer
– Mash tun opening safety protection
– Safety protection when opening the filtration vat
– Stainless steel piping type DIN 11851° spindle
– In-line filter
– Grant
– Steam predisposition (steam systems)
– Footboard
– DIN key
