DESCRIPTION

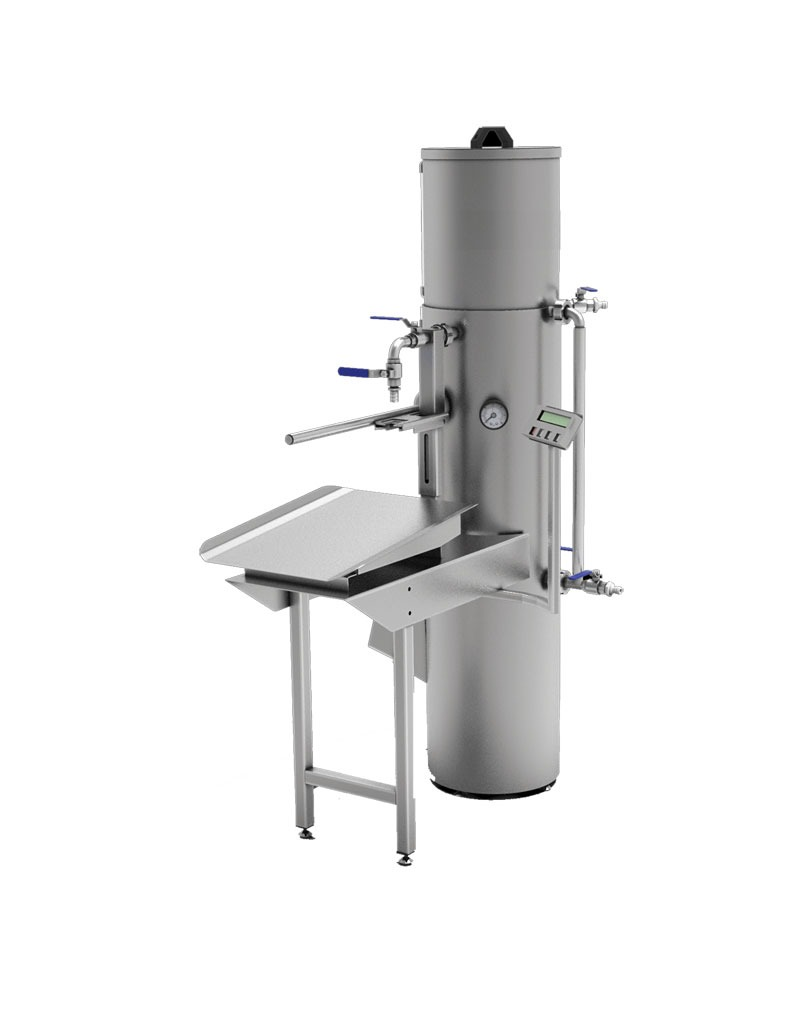

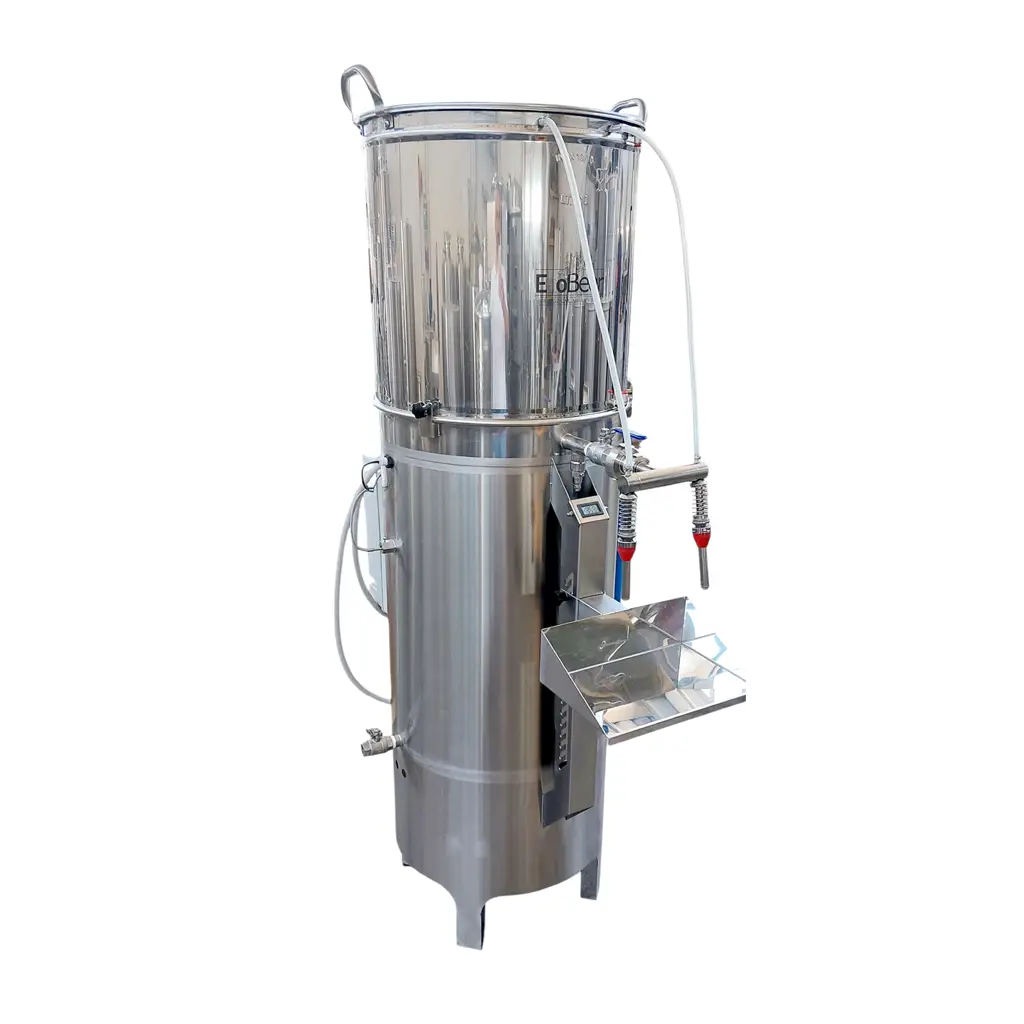

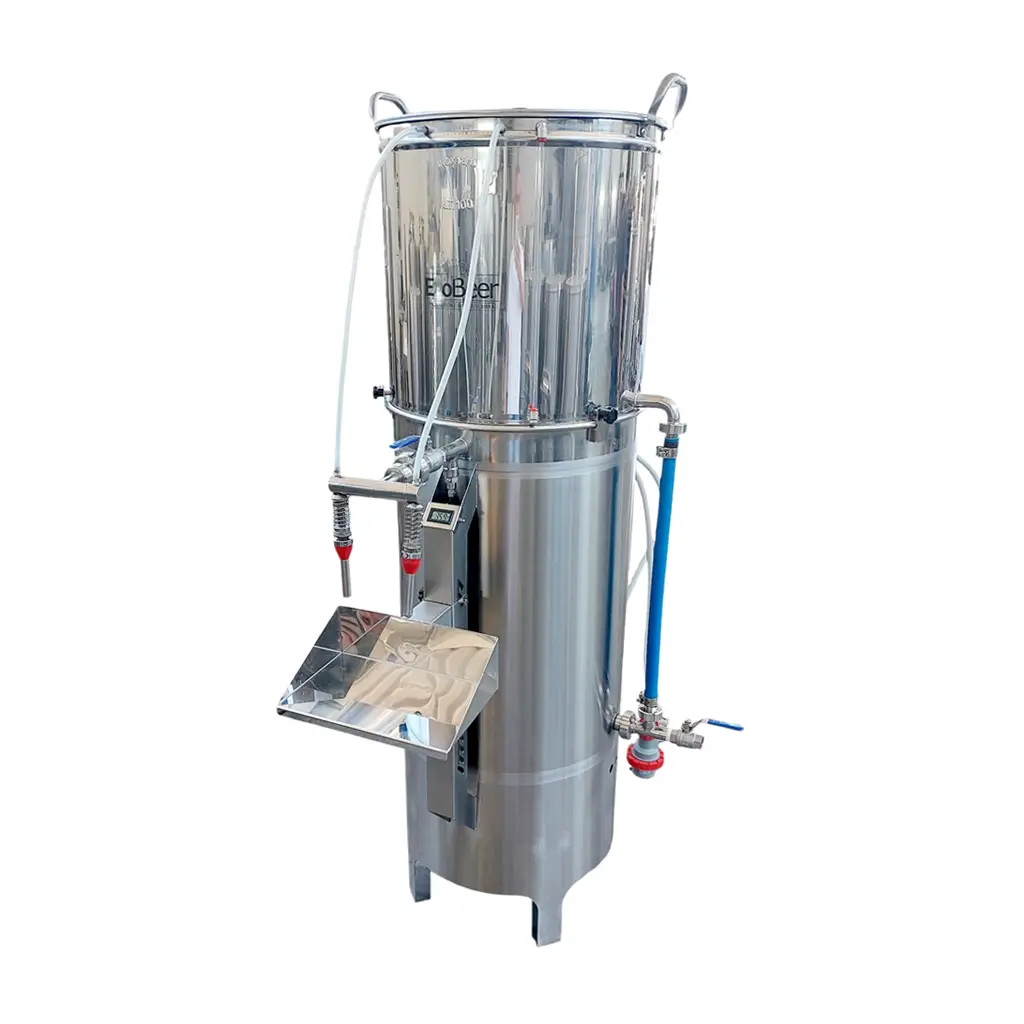

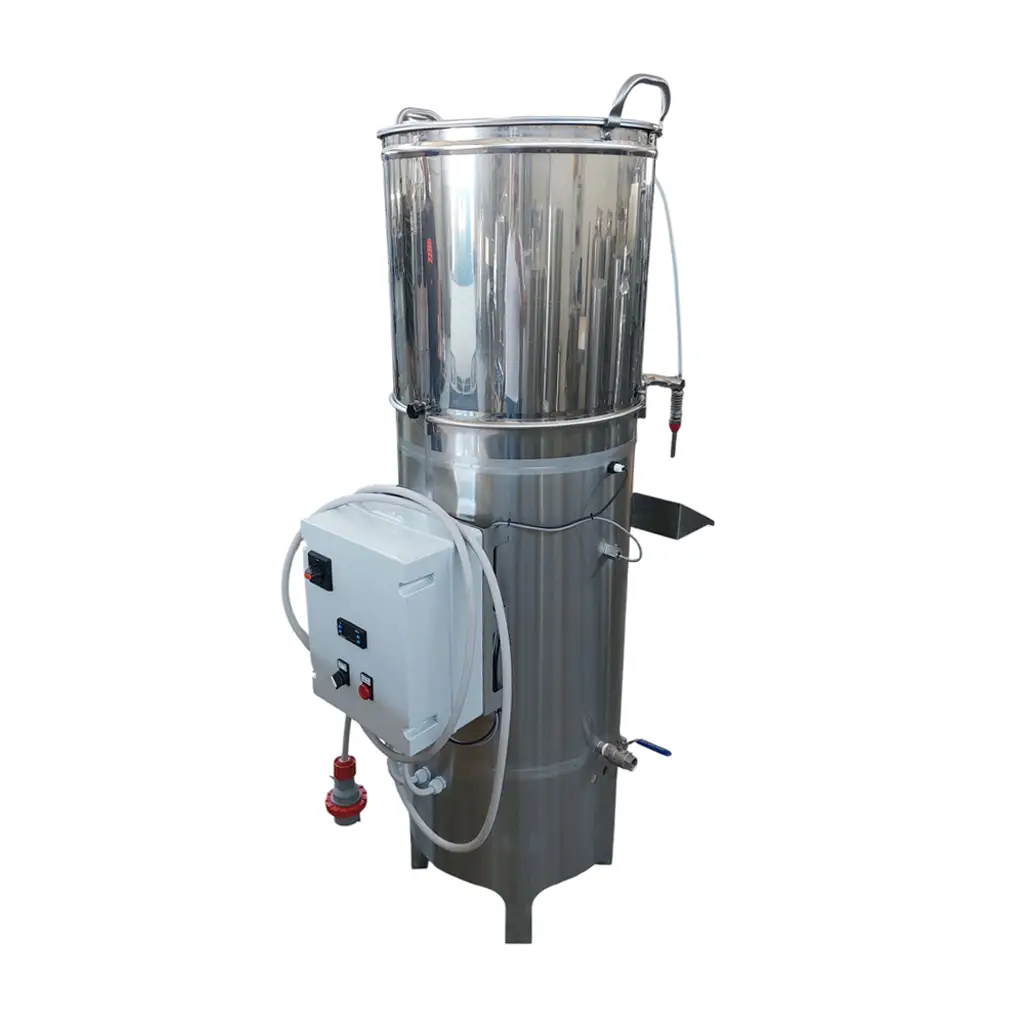

The END/E 200 LT Pasteurizer-Filler is used for the pasteurization of juices and other liquid products, and for their filling into bottles or Bag-in-Box containers. The machine is equipped with an integrated heating boiler. Inside, there is a tubular stainless steel heating coil.
The liquid enters the tubular coil, which is surrounded by hot water.
The heat from the water warms the liquid and eliminates bacteria.
The coil is integrated into the boiler, which allows for space saving and avoids heat loss during water pumping to an external heat exchanger. This enables thermal energy savings of up to 15–20%.
Equipped with a safety sensor to prevent dry operation.
The pasteurizer does not start unless the water level is correct.
Optional: easily interchangeable filling heads for Bag-in-Box or bottles. Bag-in-Box filling table with scale for weight monitoring. The Bag-in-Box closing handle is spring-actuated, making it easier to open and close. Automatic bottle filling: the process stops when the bottle is full. Bottle filling table adjustable according to bottle size.
If the boiler temperature exceeds the preset value, an automatic temperature sensor switches off the heaters.
The juice temperature is monitored manually.
