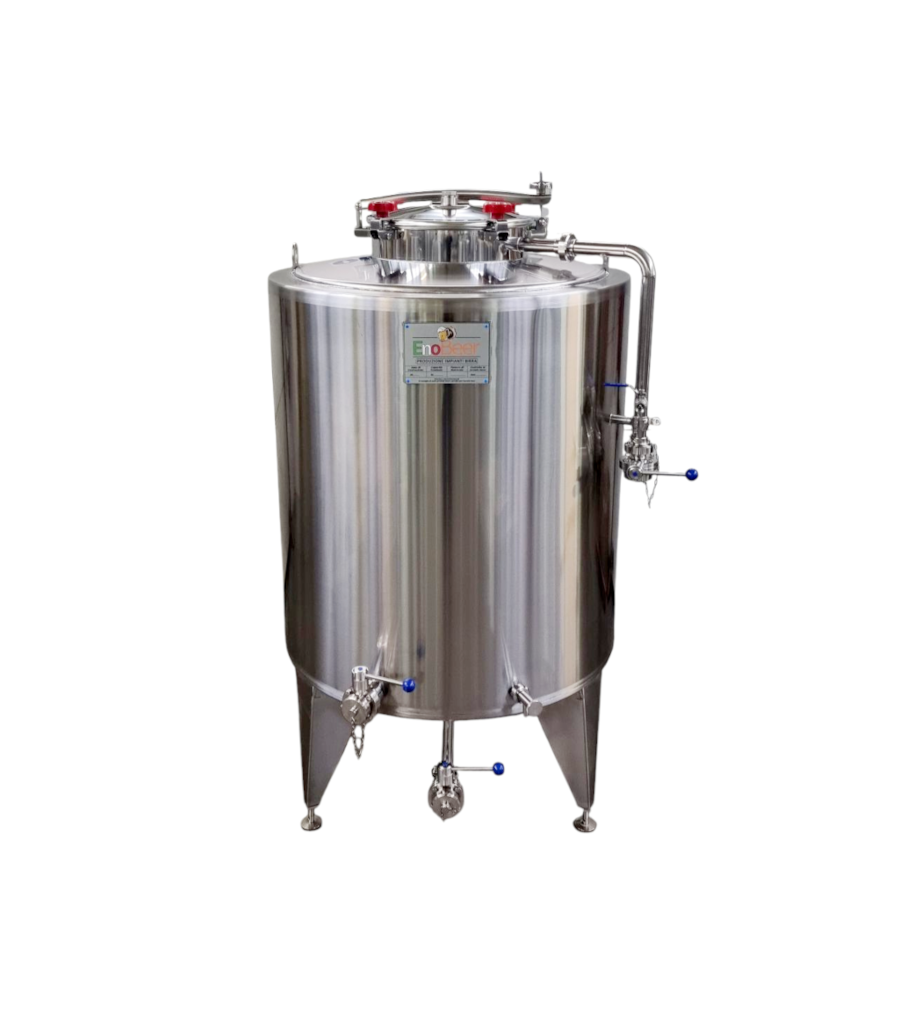

STANDARD FEATURES
• Tanks constructed in AISI 304 stainless steel 18/10 (optional
AISI 316 stainless steel);
• Internal finish polished to a mirror-like surface, external finish
satin with satin welds;
• 10° conical bottom – 10° conical roof;
• Welded legs at the bottom with adjustable feet;;
• Top manway Ø 400 with 90mm frame height, side opening, and
flag;
• Manway preparation for inert gas with P.max 30mmbar;
• Stainless steel valve for inert gas inlet;
• DIN washing pipe with stainless steel butterfly valve and wash
ball;
• Stainless steel sample taker;
• Total and partial drain with DIN stainless steel butterfly valves;
• N.1 cooling jacket dimpled (for 3 to 20 HL);
• N.2 cooling jackets dimpled (for 25 to 40 HL).
